Crimping Machines

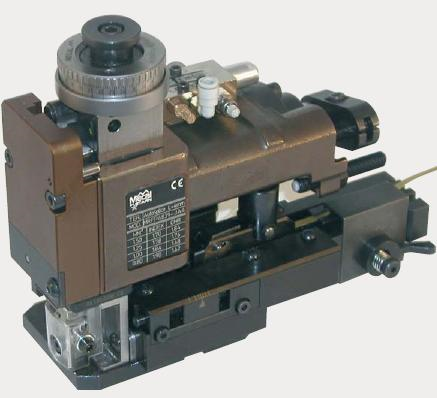

MRFPS Splicing applicator
The patented MRFPS – Splicing Applicator is conceived to handle a Continuous Copper Band which is fed, cut, formed and crimped around two side wires in one press stroke. The crimping result in terms of quality and reliability is simply outstanding. Beside wires, it is used to connect Neon Lamps, Led; Switches, Adaptors and so on.
Technical data
| ID: | MRFPS |
| CRIMPING HEIGHT: | 135.8mm (5.346”) |
| STROKE: | 40mm (1.575”) |
| TERMINAL PITCH: | from 4.1 to 14.4mm |
| COPPER BAND WIDTHS: | 2 – 4 – 6mm |
| FEEDING SYSTEM: | air pressure 5/6 Bar |
| WEIGHT: | 4,5Kg (9.9lb) |
| DIMENSIONS: | W79,5xH145,5xD200 |

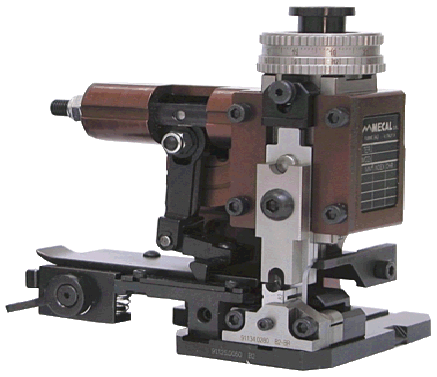

EVOLUTION aplikator MES/MEF
Technical data
| ID: | MES/MEF |
| CRIMP HEIGHT: | 135.8mm (5.346”) |
| STROKE: | 40/30mm (1.575/1.18”) |
| TERMINAL PITCH: | to 27mm (1.063”) |
| TERMINAL THICKNESS: | to 0.6mm (0.023”) |
| WIRES: | to 6 mm² |
| FEEDING SYSTEM: | mechanical |
| WEIGHT: | 3 Kg (6.6 Lb) |
| DIMENSIONS: | W144xH145.5xD190 – W200x H580xD300 |

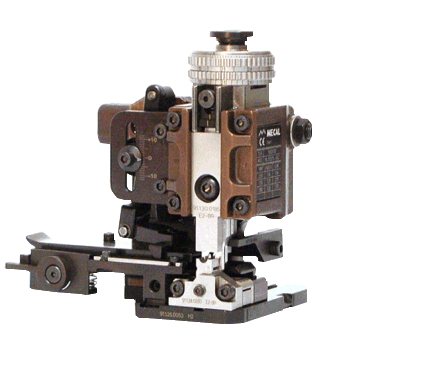

Restyling aplikator MRS/MRF
Technical data
| ID: | MRS/MRF |
| TOOL HEIGHT: | 135.8mm (5.346”) |
| STROKE: | 40/30mm (1.575/1.18”) |
| TERMINAL PITCH: | do 27mm (1.063”) |
| TERMINAL THICKNESS: | do 1.2mm (0.047”) |
| WIRES: | do 10 mm² |
| FEEDING SYSTEM: | mech./pneumatic |
| WEIGHT: | 4 Kg (8.8 Lb) |
| DIMENSIONS: | W144xH145.5xD105 |

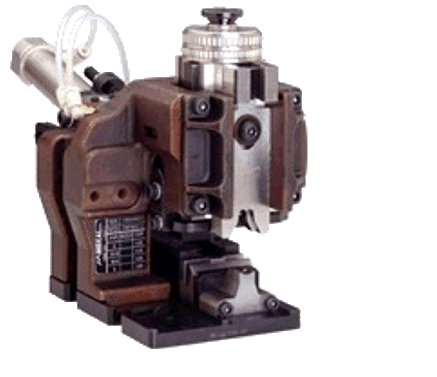

MAGNUM applicator LMP/FMP
Technical data
| ID: | LMP/FMP |
| TOOL HEIGHT: | 135.8mm (5.346”) |
| STROKE: | 40/30mm (1.575/1.18”) |
| TERMINAL PITCH: | ne povezani |
| TERMINAL THICKNESS: | do 1.2mm (0.047”) |
| WIRES: | do 10 mm² |
| FEEDING SYSTEM: | mech./pneumatic |
| WEIGHT: | 7.4 Kg (16.3 Lb) |
| DIMENSIONS: | W320xH145.5xD140 |

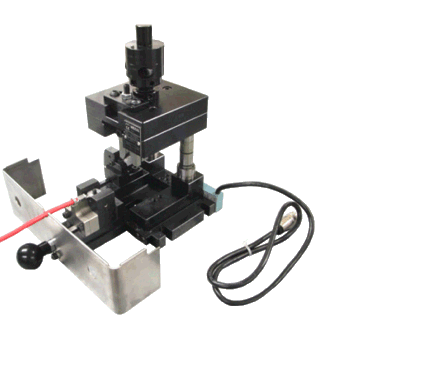

“TWO POST DIE” applicator MSAS/MSAP
Technical data
| ID: | MSAS/MSAP |
| TOOL HEIGHT: | 212mm (8.346”) |
| STROKE: | 50/40mm (1.968/1.575”) |
| TERMINAL PITCH: | ne povezani |
| TERMINAL THICKNESS: | do 1.5mm (0.059”) |
| WIRES: | do 75 mm² |
| FEEDING SYSTEM: | manual/pneumatic |
| WEIGHT: | 17Kg (37.4 Lb) |
| DIMENSIONS: | var. config. |

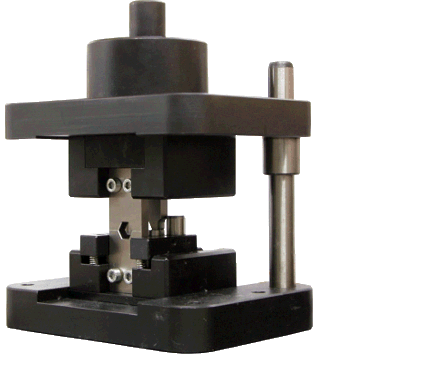

EXTREME TWO POST DIE applicator MSC
Technical data
| ID: | MSC |
| TOOL HEIGHT: | 272mm (10.7”) |
| STROKE: | 50mm (1.968”) |
| TERMINAL THICKNESS: | iznad 1.5mm (0.059”) |
| WIRES: | 75 mm² i više |
| FEEDING SYSTEM: | manual |
| WEIGHT: | 20.4 Kg (44.85 Lb) |
| DIMENSIONS: | var. config. |
