Cutting & Stripping
From simple cable cutters for cutting the widest variety of materials to high-performance automatic wire stripping machines for large wire cross-sections, Komax offers you a full range to choose from, complete with all the appropriate accessories. Preliminary and postprocessing of the wire is also a top priority. Wire stripping, whether round or flat cables, single or multi core, the cable cutters and wire stripping machines offer a wide range of processing.
Kappa 340
Kappa 340 - Versatile and powerful for complex wires with cross section of 0.22 – 70 mm²
Technical data
| Wire cross section: | 0.22 – 70 mm² (AWG 30 – 8) |
| Max. outer diameter: | 16 mm (0.4 in.) |
| Max. wire transport speed: | 4.0 m/s (78.75 in./s) |
| Max. stripping lengths: | Full strip Side 1: 260 mm (3.94 in.) Side 2: 135 mm (1.57 in.) Half strip Side 1: 999.9 mm (39.37 in.) Side 2: 999.9 mm (39.37 in.) Semi strip Side 1: 999.9 mm (39.37 in.) Side 2: 999.9 mm (39.37 in.) |

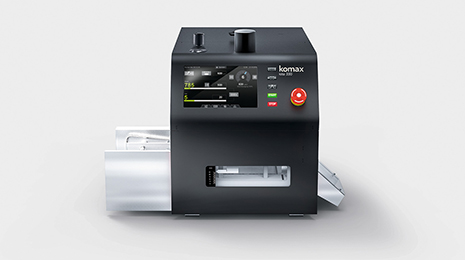

Iota 330
As an all-round solution in the cutting machine segment, the lota 330 has universal scope for application. The unit is designed to cut a wide variety of coiled materials to an exact length (up to 1,000 m), such as heat-shrink tubing, pneumatic hoses, cables, plastic bands and much more. The lota 330 does the job carefully and reliably while guaranteeing user-friendly operation.
Technical data
| Strip length: | 1mm–1.000.000mm |
| Max. admission width: | 82mm |
| Cable cross-section: | 0,14-35 mm2 (AWG26–AWG2) |
Kappa 310
Cutting force, high volume output and advanced sensor technology make the Kappa machines the number one choice for automated cutting and stripping, even for smaller wire cross-sections. The machines can be used very efficiently thanks to their simple, intuitive control elements.
Technical data
| Wire cross-section: | 0.02 – 6 mm² (AWG 34 – 10) |
| Max. outer diameter: | 10 mm (0.4 in.) |
| Max. wire transport speed: | 4.0 m/s (157.5 in./s) |
| Max. stripping length: | Full strip Side 1: 100 mm (3.94 in.) Side 2: 40 mm (1.57 in.) Semi-strip Side 1: 999.9 mm (39.37 in.) Side 2: 999.9 mm (39.37 in.) Multi-step strip Side 1: 999.9 mm (39.37 in.) Side 2: 999.9 mm (39.37 in.) |
Kappa 315
Cutting force, high volume output and advanced sensor technology make the Kappa machines the number one choice for automated cutting and stripping, even for smaller wire cross-sections. The machines can be used very efficiently thanks to their simple, intuitive control elements.
Technical data
| Wire cross-section: | 0.05 – 10 mm² (AWG 30 – 8) |
| Max. outer diameter: | 10 mm (0.4 in.) |
| Max. wire transport speed: | 2.0 m/s (78.75 in./s) |
| Max. stripping length: | Full strip Side 1: 100 mm (3.94 in.) Side 2: 40 mm (1.57 in.) Semi-strip Side 1: 999.9 mm (39.37 in.) Side 2: 999.9 mm (39.37 in.) Multi-step strip Side 1: 999.9 mm (39.37 in.) Side 2: 999.9 mm (39.37 in.) |

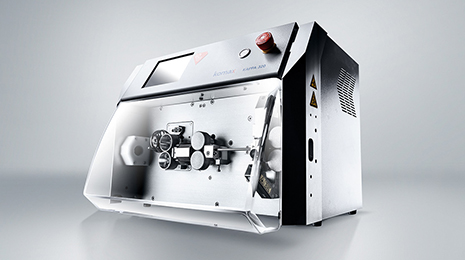

Kappa 320
Cutting force, high volume output and advanced sensor technology make the Kappa machines the number one choice for automated cutting and stripping, even for smaller wire cross-sections. The machines can be used very efficiently thanks to their simple, intuitive control elements.
Technical data
| Wire cross-section: | 0.05 – 10 mm² (AWG 30 – 8) |
| Max. outer diameter: | 10 mm (0.4 in.) |
| Max. wire transport speed: | 4.0 m/s (78.75 in./s) |
| Max. stripping length: | Full strip Side 1: 100 mm (3.94 in.) Side 2: 40 mm (1.57 in.) Semi-strip Side 1: 999.9 mm (39.37 in.) Side 2: 999.9 mm (39.37 in.) Multi-step strip Side 1: 999.9 mm (39.37 in.) Side 2: 999.9 mm (39.37 in.) |
Kappa 322
Power, performance and unique types of sensors are the three key features of the fully automatic Kappa cutting and stripping machines. All machine types in the Kappa product family are compelling in the extremely broad range of processing they cover. Thanks to the simple, flexible controls, even difficult to process materials can be set up quickly and easily. The changeover to new types of cables can be done without tools so it is ultra-fast.
Technical data
| Wire cross-section: | 0.05 – 16 mm² (AWG 30 – 5) |
| Max. outer diameter: | 12 mm (0.47 in.) |
| Max. transport speed: | 4.0 m/s (78.75 in./s) |
| Max. stripping length: | Full strip Side 1: 100 mm (3.94 in.) Side 2: 90 mm (3.54 in.) Semi strip Side 1: 999.9 mm (39.37 in.) Side 2: 999.9 mm (39.37 in.) |

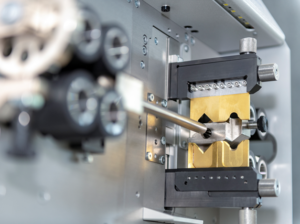

Kappa 330 SH/DH
Kappa 330 is available in two different versions:
Single Head: Cutting and stripping machine Kappa 330 with single-blade principle (cutting unit with one blade position)
Dual Head: Cutting and stripping machine Kappa 330 with double blade principle (cutting unit with two blade positions)
Technical data
| Wire cross-section: | 0.22 – 35 mm² (AWG 24 – 2) |
| Max. outer diameter: | 16 mm (0.63 in.) |
| Max. transport speed: | 4.0 m/s (78.75 in./s) |
| Max. stripping length: | Full strip Side 1: 180 mm (3.94 in.) Side 2: 50 mm (3.54 in.) Semi-strip Side 1: 999.9 mm (39.37 in.) Side 2: 999.9 mm (39.37 in.) |

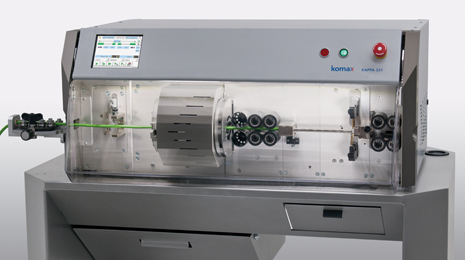

Kappa 331
The Kappa 331 is a modular cut and strip machine with a rotating blade module. Round, multilayered cables – with and without shielding – are precisely stripped in multiple steps. The machine can be changed over quickly, making it ideal for flexible use.
Technical data
| Length range: | 1mm–800000mm |
| Max outer diameter: | 10 mm (0.4 in.) |
| Max. stripping length: | Side 1 - 180 mm Side 2 - 50 mm |
| Wire cross-section: | 0.22–35mm2 (AWG23-AWG2) |

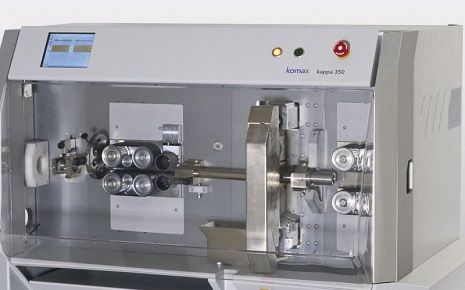

Kappa 350
The Kappa 350 belong to the latest generation of automatic cutting and stripping machines. This model is compelling in the extremely broad range of processing they cover. With the simple, flexible touch controls, even difficult to process materials can be set up quickly and easily. The conversion to new types of cables can be done without tools so it is ultra-fast.
Technical data
| Length range: | 1mm–700000mm |
| Max. stripping length: | Side 1 - 290 mm Side 2 - 150 mm |
| Wire cross-section: | 2.5–120mm2 (AWG14-AWG4/0) |
